micropore titanium aerator
- titanium filter
- filtering rate:10um
- OD80*3*300mm
- end:M20
- Product description: Microporous sintered porous metal filter core,Titanium Microporous Plate Filter,stainless steel powder Sintered filter cartridge Microporous filter,Titanium Microporous Plate Filter,Titanium Micropore
Product introduction

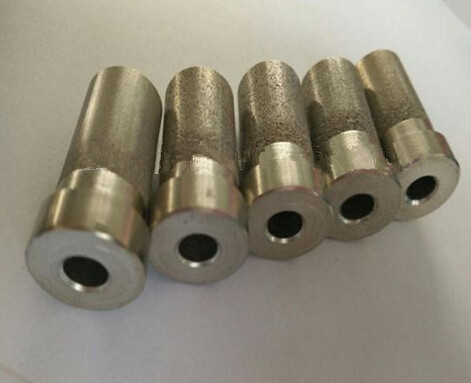

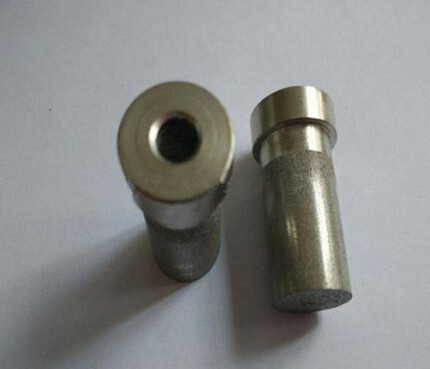

Microporous sintered porous metal filter core
OD80*3*300mm
filtering rate:10um
Sintered Titanium and Titanium alloy filter elements Technical parameters under the condition of temperature:≤300°C
Filter Grade |
Porosity % |
Filter Rating μm |
Pore Size Max (μm) |
Permeability 10 – 12m2 |
Gas permeability m3/h.m2.kpa |
Compression Strength Map / cm2 |
T9 |
25%-45% |
0.2 |
2.5 |
- |
1.5 |
3.0 |
T8 |
0.5 |
4 |
- |
3 |
3.0 |
|
T7 |
1 |
6 |
- |
5 |
3.0 |
|
T6 |
2 |
10 |
- |
15 |
3.0 |
|
T5 |
5 |
15 |
0.04 |
40 |
2.5 |
|
T4 |
10 |
30 |
0.15 |
120 |
2.5 |
|
T3 |
20 |
60 |
1.01 |
250 |
2.5 |
|
T2 |
30 |
100 |
2.01 |
500 |
2.5 |
|
T1 |
50 |
160 |
3.02 |
800 |
2.5 |
|
Note: 1.Powder rolling and roll welding tube inside pressure strength ≥ 0.3 Mpa or as you request. 2.We can offer filter disc, tube,cone, cap, plate,cup,flake,cylinder. |
