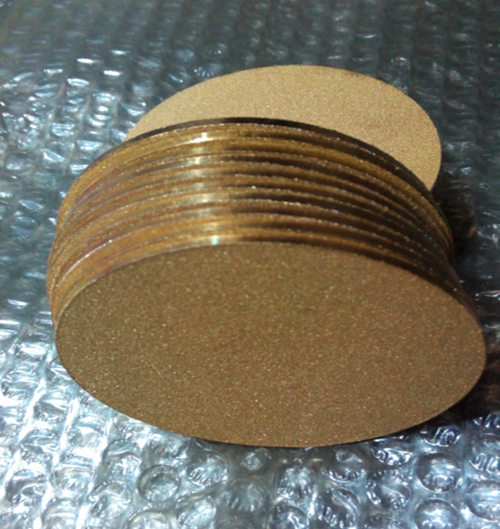

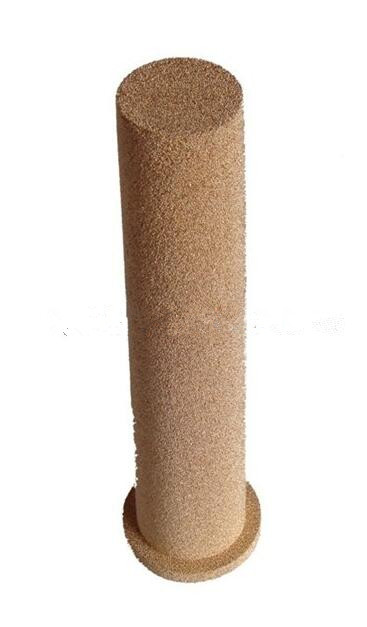

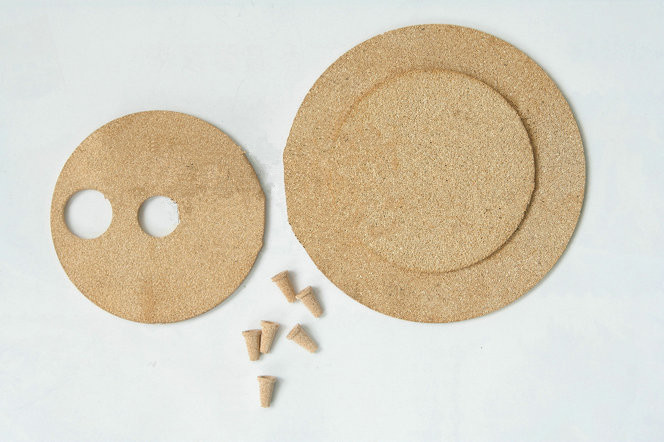

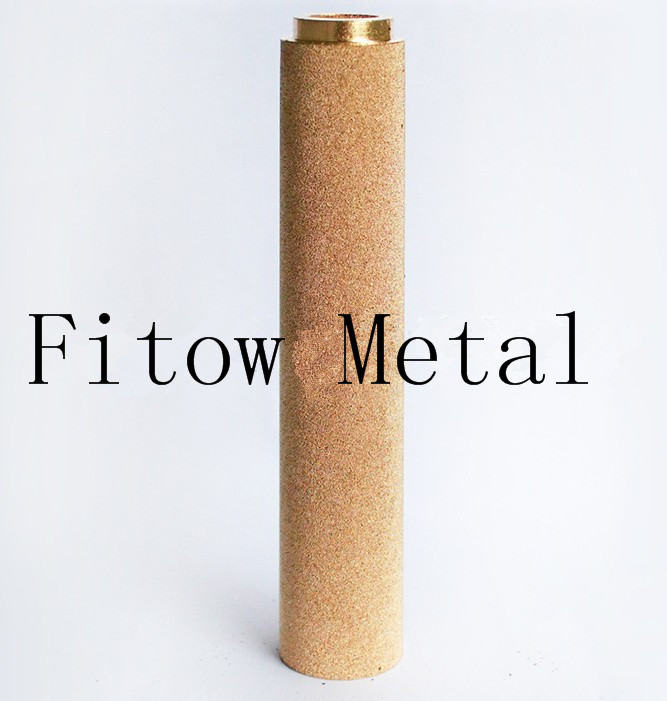

Sintering Microns Porous Bronze Powder Filter
- Product ID:1024248
- weight:1.5kg
- FILTERING PRECISION: 0.45μm - 120μm
- COMPRESSIVE STRENGTH: 0.5-1.5MPa
- Product description: Sintering Microns Porous Bronze Powder Filter ,Sintered bronze powder filter ,stainless steel/bronze/titanium powder sintered filter/muffler ,Sinter parts sintered powder metal filter ,
Product introduction
Technical Data
Chemical Composition (Nominal) : Cu - 89 % Sn - 11%
Density : 5 - 6.5 gm/cc
Porosity By Volume : 30 - 45 %
Coefficient Of Linear Expansion : 18.3 x 106/°C
Temperature Suitable : In Oxidizing Gasses (air) up to 180°C
or in reducing gasses up to 400°C
Feature:
l Filter fineness: 1-100 microns
l Easy to install
l Structure strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa, etc
l Completely interchangeable with original element
l Wide range of types are available
l Any size
l Sample is available
l Energy efficient filters
l High integrity design to save your space
l OEM product is welcomed
Use:
* Solid gas separation
* Muffler, silencer
* Air purification
* Filtering oil
* Dedusting , Isolation dust , dustproof
* Gas-oil dissociation
* Gas liquid separation
* Moistureproof
* Heat insulation ,
* Cooling
* Uniform gas, well-distributed, diffuse gas or oil or heat
* Breathable protection
* Pharmaceutical, medicine
* Chemical
* Chemical fiber
* Filtration for high temperature environment
* High pressure reverse wash filtering
* Acid and alkali corrosion environment filtering
