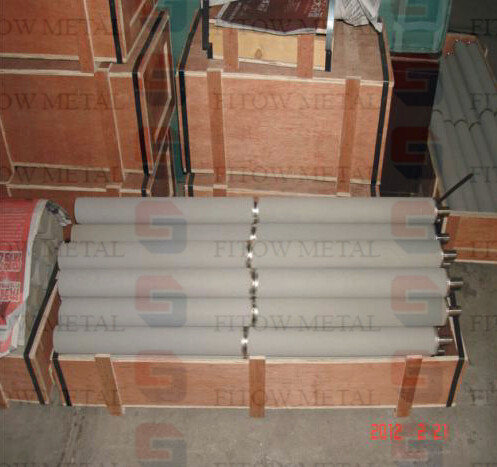

Sintered Filter Cartridge
- OD10-150MM
- Filtering precision:28%-50%
- Filtering precision:0.2-50um
- Porosity40%
- Product description: Sinter metal powder filters(Porous metal filters), Stainless Steel Sintered metal powder filter element,stainless steel powder sintering filter ,Microporous Sintered Titanium Filter Plate,sintered po
Product introduction
Applications:
*Steam Filtration,de-dusting
*Water Filtration,oil filtration,food and beverage filtration,chemical filtration
*Oxidizing liquid filtration
*Strong polar solvent filtration
*Decarburization filtration
*Viscous liquid filter
*Corrosive liquid filtration
*Liquid and gas filtration at high temperature and pressure condition
Features & Benefits:
*Sintered metal media design,high corrosion resistance
*Back wash for many times,long life ,low cost.
*Various micron rating meets different design requirements,high flow capacity
*Widely service environment,can be continuously in temperature ranging from-200°C to 600°C and filtering in acid and alkali conditions
Connectors:
Standard type: |
220.222.226(Code 7) |
Thread Type: |
NPT,BSP,Metric |
Fast Interface type: |
Custom production |
Flange Type: |
Custom production |
Tire Rod Type: |
Custom production |
Other Type: |
Custom production |
Specifications:
Sintered Filter Media |
S.S., Ti Metal powder particle |
Alloy:Monel-400,Inconel-600 |
|
Filter Micron |
0.1-100μm |
Standard OD |
OD:30-80mm |
Standard Length |
10"(250/254mm), 20"(500/508mm), 30"(750/762mm),40"(1000/1016mm) |
Suggest Working Temperature: |
<480°C(SS,Ti) >1100°C(Alloy) |
MOC |
SUS316L,Ti,Alloy |
Support Cage/Core |
Spring, Perforated Metal Tube |
Technical Data:
Media |
Micron (µ) |
Aperture (µ) |
Pressure (MPa) |
Temperature (°C) |
Application |
Stainless Steel |
0.2-0.8 |
2.5-160 |
3 |
≤ 600 |
Acid,Hydrogen,Vapour, Sulphide,Gas,Dedusting |
Tatinium |
0.2-0.8 |
2.5-160 |
2-3 |
≤ 300 |
Acid,Sea Water,Gas |
Bronze |
5-80 |
4-160 |
2-2.5 |
≤ 300 |
Air,Water,Oil,Organic Solvent |
Ni &Alloy |
0.5-60 |
3-100 |
2-2.5 |
≤ 550 |
Alkali,Acid,Liquid |
Alloy |
1-80 |
6-150 |
1.5-3 |
≤ 1000 |
Organic Solvent,Acid |
