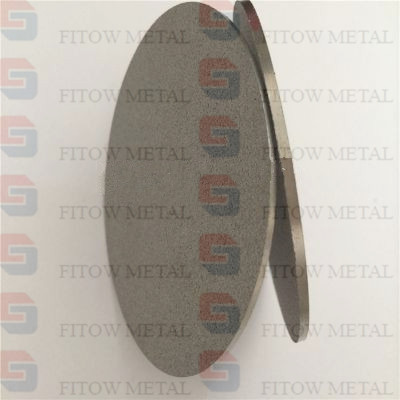

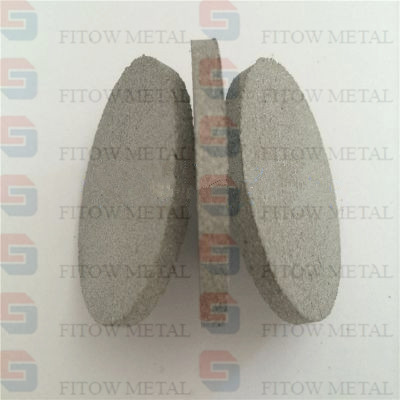

316L Stainless steel Sintered Porous Metal Filter Disc
- .ss302,304,316,316L
- Filtration precision: 0.2μm-80μm
- Filtration Efficiency: 98%
- Thickness: 0.6 - 10mm
- Product description: Sintered stainless steel filter disc,intered filter element ,Stainless steel powder sintered filter element, powder sintered filter element, Microns Sintered Porous Stainless Steel,stainless steel po
Product introduction
Sintering Stainless Steel Filter Disc
Item Name |
316L Sintering Stainless Steel Filter Disc |
|
Porosity |
40%(max) |
|
Aperture |
2.5-160μm |
|
Filtration precision |
0.2μm-80μm |
|
Filtration Efficiency |
98% filtration accuracy under:0.2 - 80um |
|
Compressive Strength |
3.0Mpa/cm2 |
|
Shape |
Tubular, Plate, Bar, Disc, Strip and so on. |
|
Specification(mm) |
Thickness |
0.6-10 |
|
Width |
Less than 340 |
Work environment |
Nitric acid, sulfuric acid, acetic acid, oxalic acid,etc. |
Filtering level |
Filtering Precision μm |
Maximum Aperture μm |
Permeability m3/h.m2.kpa |
Thickness mm |
Compressive strength Mpa/cm2 |
S9 |
0.2 |
2.5 |
1.5 |
3 |
3.0 |
S8 |
0.5 |
4 |
3 |
3 |
3.0 |
S7 |
1.0 |
6 |
5 |
3 |
3.0 |
S6 |
2.5 |
10 |
15 |
3 |
3.0 |
S5 |
5 |
15 |
40 |
3 |
3.0 |
8 |
20 |
80 |
3 |
3.0 |
|
S4 |
10 |
30 |
120 |
3 |
3.0 |
S3 |
20 |
60 |
250 |
3 |
3.0 |
S2 |
30 |
100 |
500 |
3 |
3.0 |
S1 |
50 |
160 |
800 |
3 |
3.0 |
Available Temperature: ≤600°C; Material: SUS304, 304L, 316, 316L, 317L, 410L, 430L, 434L. |
