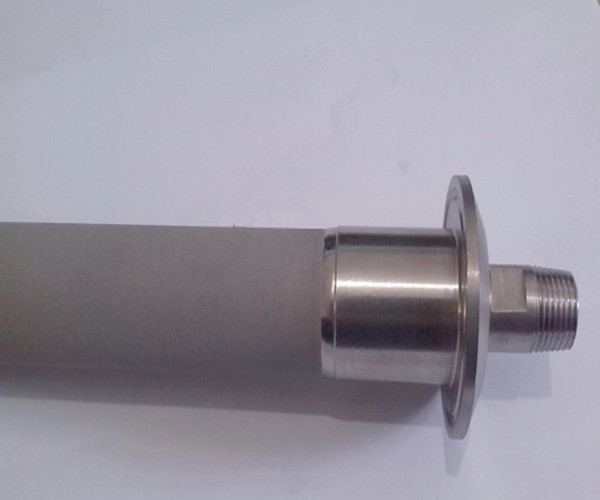

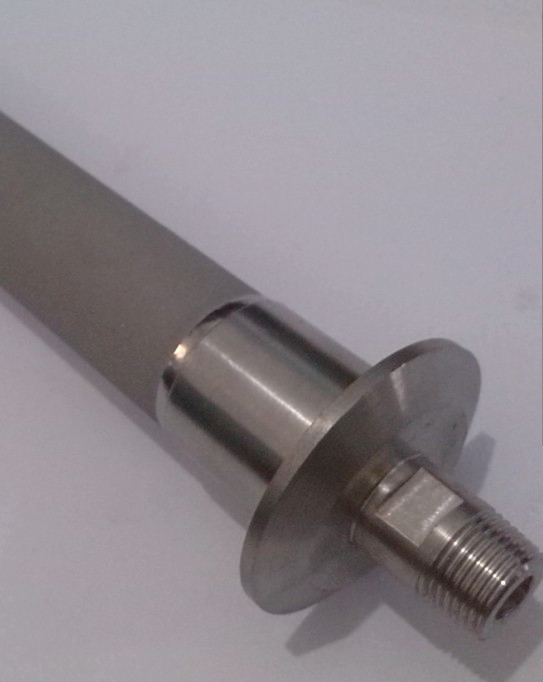

Titanium sintering filter 3/8 interface parts - 副本
- Product ID:105554
- weight:2kg
- FILTERING PRECISION: 0.45μm - 120μm
- COMPRESSIVE STRENGTH: 0.5-1.5MPa
- Product description: microns powder stainless steel sintered filter cups, micro-porous SS cylindrical filter, Sintered powder filter elements ,spherical titanium powder sintered filter tubes,Titanium powder sintered filte
Product introduction
Titanium Powder Sintering Filter
titanium rod filter
Titanium rod filter (including tube and plate) are industrial high pure titanium powder (99.4%) for raw materials, sub-screen, after cold isostatic pressing, high temperature, high vacuum sintering. Thus its high-tech titanium rod filter material and special molding process, it has a unique and excellent performance:
1, uniform structure, narrow pore size distribution, high separation efficiency.
2, high porosity, filtration resistance, high penetration efficiency.
3, high temperature, generally below 280 degrees in normal use.
4, good chemical stability, acid corrosion, has antioxidant properties.
5, no particle shedding, not to dope the formation of secondary pollution, food hygiene and pharmaceutical GMP requirements.
6, good mechanical properties, can be suction filter press, simple operation.
7, the pressure is low, small footprint, large flow.
8, anti-microbial ability, not the role of microorganisms occur.
9, the molding process is good, the overall length of up to 1000 mm without welding.
10, available online renewable, easy to clean, long life (typically several times the membrane filter)
Second, the main parameters of titanium rod filter
Filtering accuracy: 0.22μm-100μm
Porosity: 28-50%
Permeability: 0.02-20M3cm / m2h.mmH2O
Compressive strength: 0.5-1.5Mpa
Temperature resistance: 280 ℃ (wet)
Maximum working pressure: 0.6Mpa
Third, the specification model
Diameter: Φ30mm Φ50mm Φ60mm
Length: 5 inches (125mm) 10 inches (250mm) 12 inches (300mm) 20 inches (500mm) 30 inches (750mm) 40 inches(1000mm)
Interface Type: M20 connector M30 connector interface 222 226 interface
Filtration: 0.45 m 3 m 5 m 1 m 10 m 20 m 30 m 50 m 80 m 100 m
Fourth, the titanium rod filter applications
Titanium rod filter with its unique properties, can be widely used in the pharmaceutical industry, water treatment industry, food industry, biotechnology, chemical industry, petrochemical industry, metallurgical industry and gas purification. Is a broad prospect of new material. Typical uses include:
1, the security industry infusion pharmacy, small injections, eye drops, oral concentrated in sectors with a charcoal filter and diluted with de-link the terminal before filtration filter.
2, the raw material drug production process impurities filtration, carbon filtration materials and fine filter off.
3, security ultrafiltration water treatment industry, RO, EDI system filtration, ozone sterilization filtration and ozone aeration.
4, food and beverage beverage, liquor, beer, vegetable oil, mineral water, soy sauce, vinegar, clarification and filtration.
5, liquid chemical industry products, liquid raw materials, carbon filter and precision filter off of pharmaceutical intermediates, fine body ultrafine catalyst was recovered by filtration, microfiltration and resin adsorption system after conducting oil, cleaning materials, filtration, catalysis Hugh gas purification.
6, oil field water filters, reverse osmosis desalination security before filtration.
7, hot off the dye industry, charcoal, clay filtered off.
8, the gas purification steam, compressed air, the catalyst was filtered.
